ARKA T-TYPE-RANGE manufacturer product reference

Product overview

ARKA T-TYPE-RANGE T-Type Disc Filter Model Range is offered for application-based water-system selection in Sabah. Water crosses a compressed stack of grooved discs. Retained particles are removed by opening and cleaning the manual element according to the selected model instructions. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Manually serviceable disc element
Selectable filtration grade
Match the connection and material variant to the duty

Applications

Water duty: River, canal, pond or reservoir water with suspended solids after suitable primary pretreatment
Water duty: Well water with particle contamination after grit separation
Water duty: Compatible cooling-water or process-water pretreatment
Industry: Drip irrigation and micro-sprinkler protection
Industry: Landscape and municipal irrigation
Industry: Cooling-water and industrial water pretreatment

Technical information

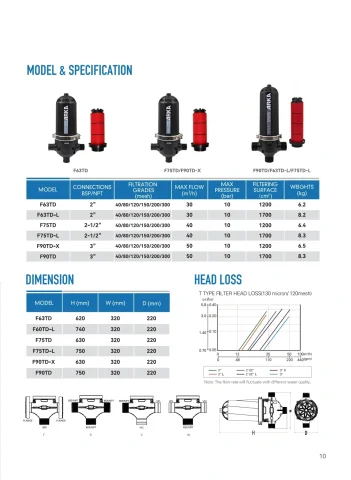

Manufacturer reference: ARKA T-TYPE-RANGE SELECTED MODEL — source-checked catalogue/web data Family model schedule: F63TD (2 inch, 30 m³/h, 1200 cm², 6.2 kg); F63TD-L (2 inch, 30 m³/h, 1700 cm², 8.2 kg); F75TD (2.5 inch, 40 m³/h, 1200 cm², 6.4 kg); F75TD-L (2.5 inch, 40 m³/h, 1700 cm², 8.3 kg); F90TD-X (3 inch, 50 m³/h, 1200 cm², 6.5 kg); F90TD (3 inch, 50 m³/h, 1700 cm², 8.3 kg). Maximum pressure 10 bar; mesh 40/80/120/150/200/300. See the catalogue technical image for model drawings and dimension schedule. SOURCE DIFFERENCE / IDENTIFICATION NOTE The catalogue dimension table spells one extended 2 inch row F60TD-L while its model schedule says F63TD-L; confirm that variant drawing. WEB-LISTED OPTIONS Color: black or transparent Material: PP or PA Filtration accuracy: 20/50/100/130/200/400 micron Type: F60TD F60TD-L F75TD F75TD-L F90TD-X F90TD See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the T-TYPE-RANGE work?

Water crosses a compressed stack of grooved discs. Retained particles are removed by opening and cleaning the manual element according to the selected model instructions.

Which water and industries suit the T-TYPE-RANGE?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for T-TYPE-RANGE selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the T-TYPE-RANGE drawings and technical references?

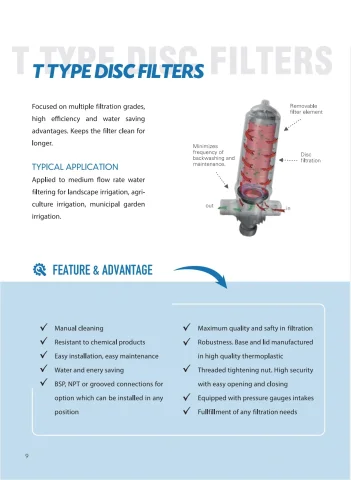

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for T-TYPE-RANGE?

The catalogue dimension table spells one extended 2 inch row F60TD-L while its model schedule says F63TD-L; confirm that variant drawing.

Discuss this product with SWFI in Kota Kinabalu

For another disc filter size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
