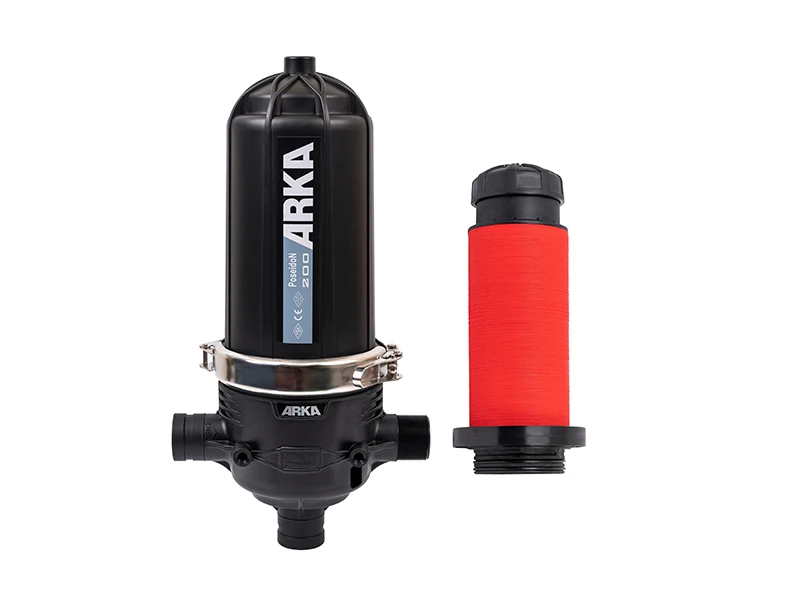

ARKA F63TDZ 2 Inch Self-Cleaning Disc Filter

Product overview

ARKA F63TDZ 2 Inch Self-Cleaning Disc Filter is offered for application-based water-system selection in Sabah. A grooved-disc stack retains suspended particles. A suitable backwash valve and controller release and flush the discs when the configured cleaning condition is reached. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

• Grooved-disc particle filtration
• Hydraulic self-cleaning element with correctly configured backwash equipment
• Modular installation options

Applications

• Water duty: Surface water from rivers, canals and ponds containing suspended particles, with upstream pretreatment where required
• Water duty: Groundwater or borehole water after appropriate grit removal
• Water duty: Compatible industrial cooling or recirculated water requiring particle pretreatment
• Industry: Agricultural drip and sprinkler irrigation
• Industry: Greenhouse and nursery water distribution
• Industry: Industrial cooling, process-water and water-reuse pretreatment

Technical information

Selection information

• Required flow and operating pressure
• Water source, solids load and chemical/material compatibility
• Pipe connection and dimensional clearance
• Filtration grade or valve function appropriate to the downstream duty
• Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F63TDZ work?

A grooved-disc stack retains suspended particles. A suitable backwash valve and controller release and flush the discs when the configured cleaning condition is reached.

Which water and industries suit the F63TDZ?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F63TDZ selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F63TDZ drawings and technical references?

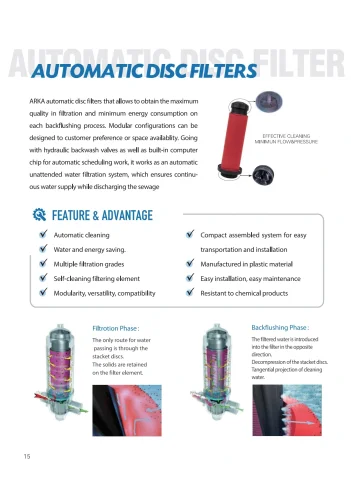

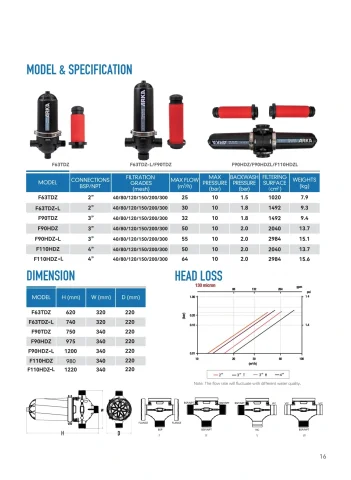

Download ARKA technical catalogue (PDF) · Download automatic filtration manual (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.
