ARKA F404H-8 manufacturer product reference

Product overview

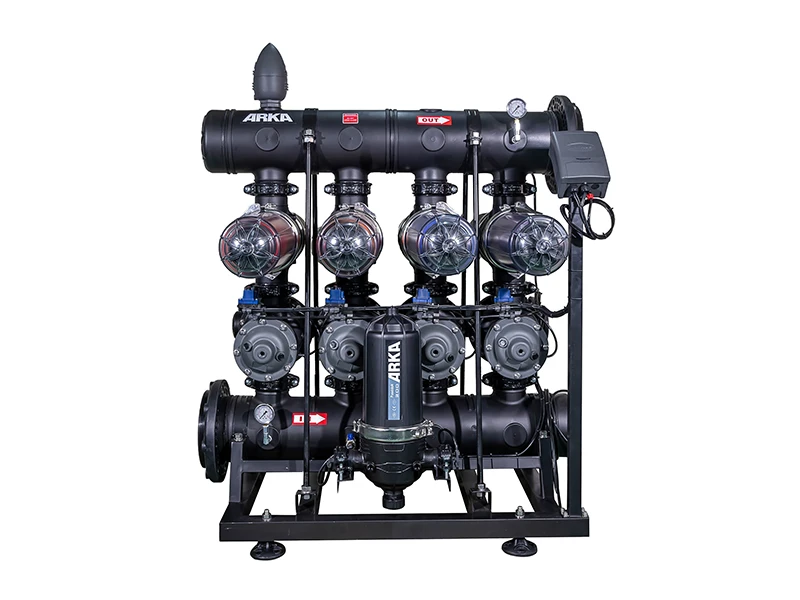

ARKA F404H-8 4 Inch Four-Unit Automatic Disc Filter Bank is offered for application-based water-system selection in Sabah. Water passes through multiple H-Type disc units connected to common manifolds. The configured controller and three-way valves reverse flow through one unit at a time for cleaning. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Modular H-Type filter bank
Sequential backwash and common drain manifold
Select filtration grade, manifold and hydraulic duty

Applications

Water duty: Pretreated river, reservoir and canal water with suspended particles
Water duty: Groundwater after primary grit removal
Water duty: Compatible cooling-water or industrial water-reuse duty
Industry: Commercial and agricultural irrigation
Industry: Industrial water-treatment plants
Industry: Cooling and recirculation-water pretreatment

Technical information

Manufacturer reference: ARKA F404H-8 SELECTED MODEL — source-checked catalogue/web data Four 4 inch units; manifold 8 inch / 200 reference; catalogue maximum flow 256 m³/h; L/H/T/R/S/W/E/F 1260/1650/290/655/1310/1220/380/990 mm. SOURCE DIFFERENCE / IDENTIFICATION NOTE The manual row F404-8 lists 248 m³/h and T=325 mm; catalogue F404H-8 lists 256 m³/h and T=290 mm. Confirm revision and project duty. SYSTEM MANUAL REFERENCE Working-pressure example 0.2–1.0 MPa; water temperature below 70°C; pH 5–11.5; filtration range 20–400 µm. Grade-dependent minimum backwash: 200–130 µm, 1.8 bar and 2.5 L/s; 100 µm, 2.5 bar and 3.1 L/s; 50–20 µm, 3 bar and 3.3 L/s. Controller example 220 V and solenoid 24 V; confirm the supplied electrical configuration. The manual specifies water service and excludes hazardous liquids and food-use liquids. The selected project drawing and component ratings govern the final assembly. See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F404H-8 work?

Water passes through multiple H-Type disc units connected to common manifolds. The configured controller and three-way valves reverse flow through one unit at a time for cleaning.

Which water and industries suit the F404H-8?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F404H-8 selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F404H-8 drawings and technical references?

Download ARKA technical catalogue (PDF) · Download automatic filtration manual (PDF) Technical sheet 1 · Technical sheet 2 · Technical sheet 3 · Technical sheet 4 · Technical sheet 5 · Technical sheet 6 · Technical sheet 7 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for F404H-8?

The manual row F404-8 lists 248 m³/h and T=325 mm; catalogue F404H-8 lists 256 m³/h and T=290 mm. Confirm revision and project duty.

Discuss this product with SWFI in Kota Kinabalu

For another automatic disc filter system size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.

Request a quotation View product in the main catalogue →
