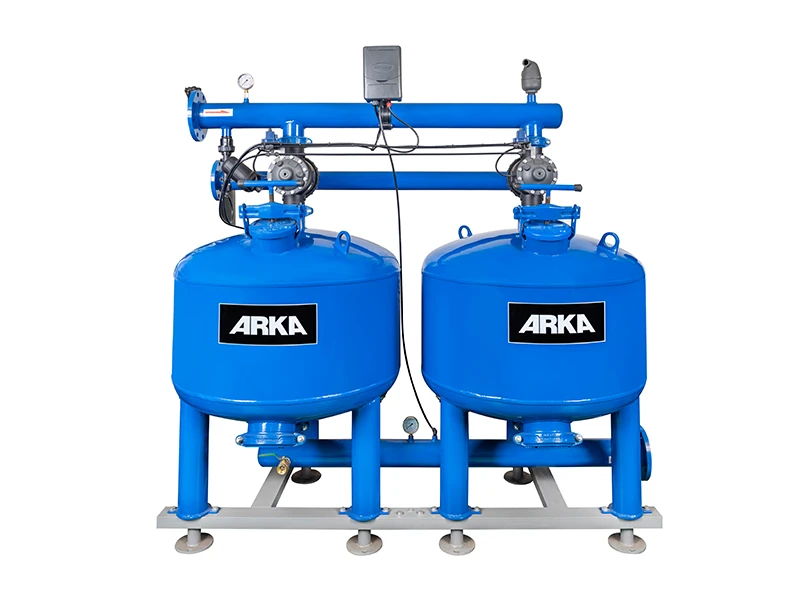

ARKA F40-2 manufacturer product reference

Product overview

ARKA F40-2 1000 mm Two-Vessel Sand Media Filter System is offered for application-based water-system selection in Sabah. Water passes through a selected media bed that retains suspended matter. Reverse-flow backwashing expands and cleans the bed, with waste discharged through the backwash valve. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Media-bed filtration
Automatic backwash with the specified control arrangement
Select media and backwash supply for the actual source water

Applications

Water duty: Surface water with suitable suspended and organic loading
Water duty: Pretreatment water ahead of fine filtration
Water duty: Compatible industrial recirculation or reuse water
Industry: Agricultural irrigation pretreatment
Industry: Raw-water treatment
Industry: Industrial and commercial water-treatment systems

Technical information

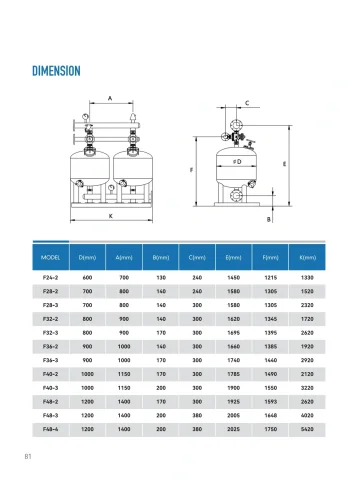

Manufacturer reference: ARKA F40-2 SELECTED MODEL — source-checked catalogue/web data Two 1000 mm vessels; inlet/outlet reference 4 inch / 100; maximum pressure 10 bar; filtering surface 1.6 m²; drain reference 3 inch / 80; backwash flow 40 m³/h; flow range 90–100 m³/h; D/A/B/C/E/F/K 1000/1150/170/300/1785/1490/2120 mm. See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F40-2 work?

Water passes through a selected media bed that retains suspended matter. Reverse-flow backwashing expands and cleans the bed, with waste discharged through the backwash valve.

Which water and industries suit the F40-2?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F40-2 selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F40-2 drawings and technical references?

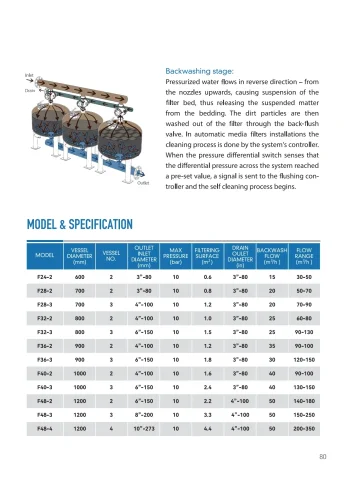

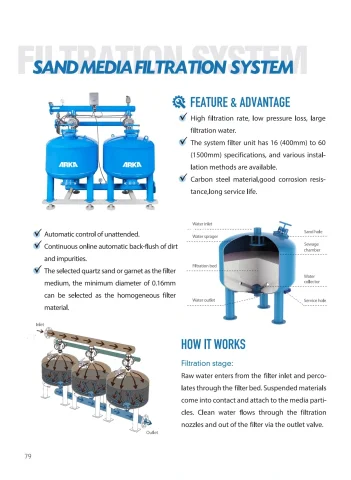

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 · Technical sheet 3 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Discuss this product with SWFI in Kota Kinabalu

For another sand media filter system size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
