ARKA F110LX manufacturer product reference

Product overview

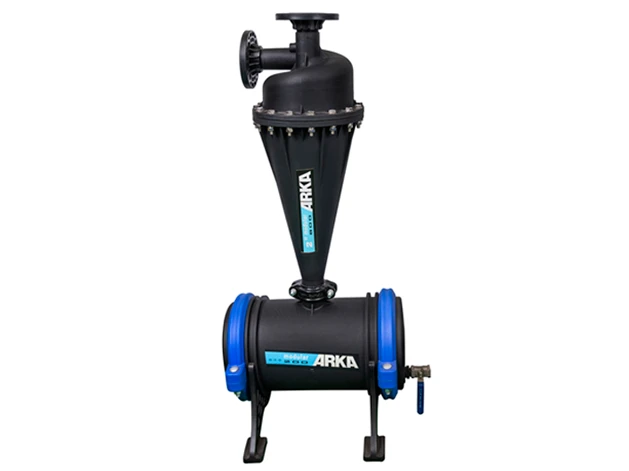

ARKA F110LX 4 Inch Hydrocyclone Sand Separator is offered for application-based water-system selection in Sabah. A swirling flow separates denser sand and grit into the lower collector. This is a primary separation stage ahead of finer disc, screen or media filtration. Select it for dense sand or grit separation before the finer filtration stage. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Centrifugal sand and grit separation
Lower sediment collection chamber
Combine with a finer downstream filter when needed

Applications

Water duty: Sandy groundwater or borehole water
Water duty: River and reservoir water carrying dense mineral grit
Water duty: Compatible recycled water with settleable dense particles
Industry: Agricultural pump stations
Industry: Raw-water intake pretreatment
Industry: Industrial water recycling with suitable sediment characteristics

Technical information

Manufacturer reference: ARKA F110LX SELECTED MODEL — source-checked catalogue/web data PA/nylon construction; nominal connection 4 inch; collector capacity 16 L; maximum flow 100 m³/h; maximum pressure 8 bar; catalogue weight 18 kg; H/W/D/X/Y 1220/490/430/205/1070 mm. SOURCE DIFFERENCE / IDENTIFICATION NOTE Web technical row is labelled F90LX despite the 4 inch product title, and lists 17.5 kg; the catalogue F110LX row lists 18 kg. Catalogue model identification is used. MANUFACTURER WEB TABLES — related models and original labels are retained below; selected-model notes above take precedence where a source conflicts. MODEL | CONNECTION | TANK CAPACITY(L) | MAX FLOW(mm) | WORKING PRESSURE(bar) | WEIGHTS(kg) F90LX | 4 inch | 16 | 100 | 8 | 17.5 MODEL | H(mm) | W(mm) | D(mm) | X(mm) | Y(mm) F110LX | 1220 | 490 | 430 | 205 | 1070 See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F110LX work?

A swirling flow separates denser sand and grit into the lower collector. This is a primary separation stage ahead of finer disc, screen or media filtration.

Which water and industries suit the F110LX?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F110LX selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F110LX drawings and technical references?

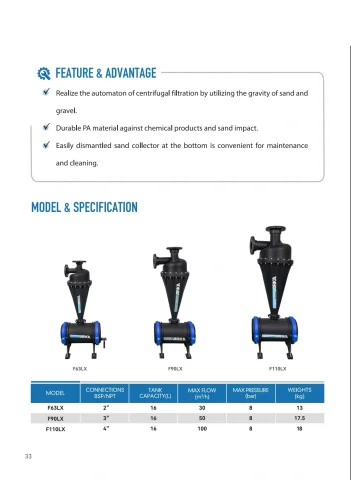

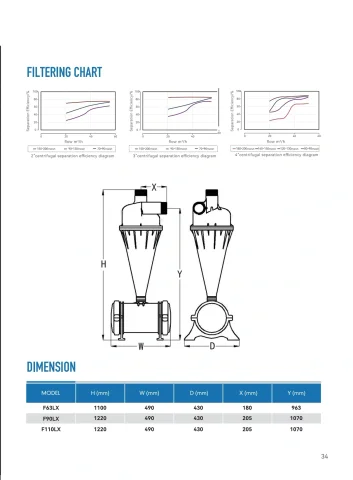

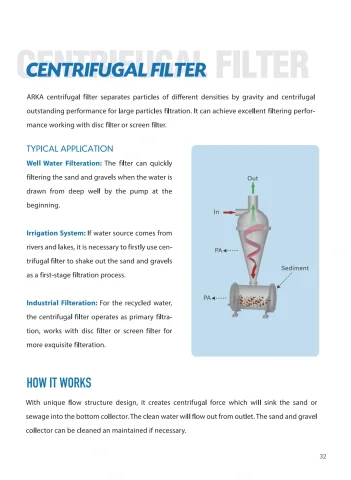

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 · Technical sheet 3 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for F110LX?

Web technical row is labelled F90LX despite the 4 inch product title, and lists 17.5 kg; the catalogue F110LX row lists 18 kg. Catalogue model identification is used.

Discuss this product with SWFI in Kota Kinabalu

For another hydrocyclone filter size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.

Request a quotation View product in the main catalogue →
