ARKA F110FMS manufacturer product reference

Product overview

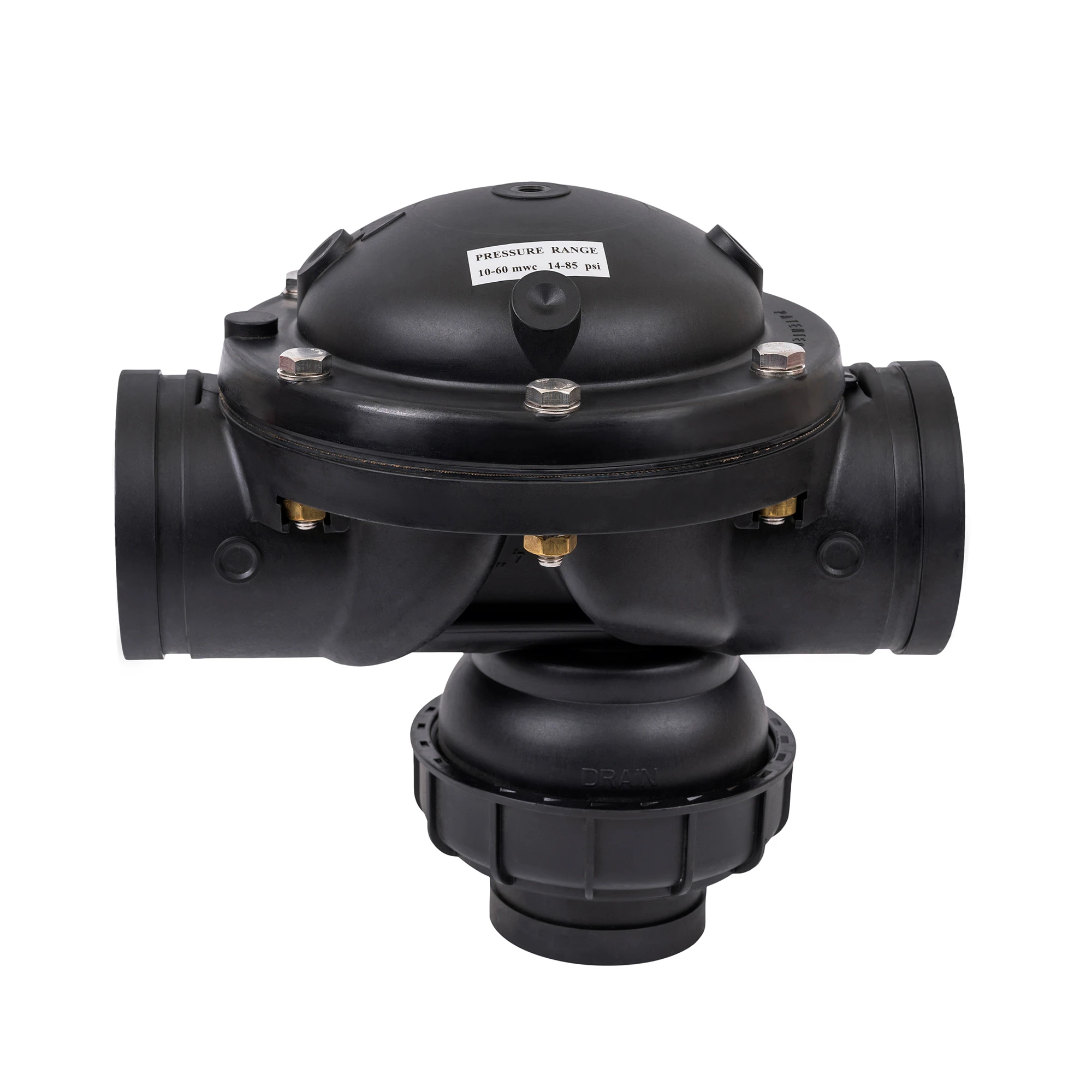

ARKA F110FMS 4 Inch Single-Chamber Three-Way Backwash Valve is offered for application-based water-system selection in Sabah. A hydraulically actuated three-way diaphragm valve changes the flow path between filtration and backwash. The actuator and control circuit must match the filter assembly. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Three-way water routing
Hydraulic diaphragm actuation
Connect to compatible backwash control equipment

Applications

Water duty: Water used in compatible disc, screen and media-filter circuits
Water duty: Filtered water available for the specified backwash sequence
Industry: Automatic filtration skids
Industry: Irrigation pump stations
Industry: Industrial water-treatment backwash systems

Technical information

Manufacturer reference: ARKA F110FMS SELECTED MODEL — source-checked catalogue/web data Connections 4 × 4 × 3 inch (4 inch option), VIC; maximum flow 80 m³/h; catalogue pressure range 0.7–10 bar; weight 5.5 kg; H/W/D 320/320/240 mm; PA stated on web. SOURCE DIFFERENCE / IDENTIFICATION NOTE Web lists maximum pressure 8 bar; catalogue lists range 0.7–10 bar. Final pressure rating must be confirmed. MANUFACTURER WEB TABLES — related models and original labels are retained below; selected-model notes above take precedence where a source conflicts. Parameter | Specification Place of Origin | Fujian, China Type | Back-flushing Control Valve Brand Name | ARKA Model Number | F110FMS Material | PA Plastic Connections | 4 inch VIC Weight | 5.5kg Color | Black Max Pressure | 8 Bar Max Flow | 80 m³/h Size | 320×320×240mm | See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F110FMS work?

A hydraulically actuated three-way diaphragm valve changes the flow path between filtration and backwash. The actuator and control circuit must match the filter assembly.

Which water and industries suit the F110FMS?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F110FMS selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F110FMS drawings and technical references?

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for F110FMS?

Web lists maximum pressure 8 bar; catalogue lists range 0.7–10 bar. Final pressure rating must be confirmed.

Discuss this product with SWFI in Kota Kinabalu

For another backwash control valve size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
