Product overview

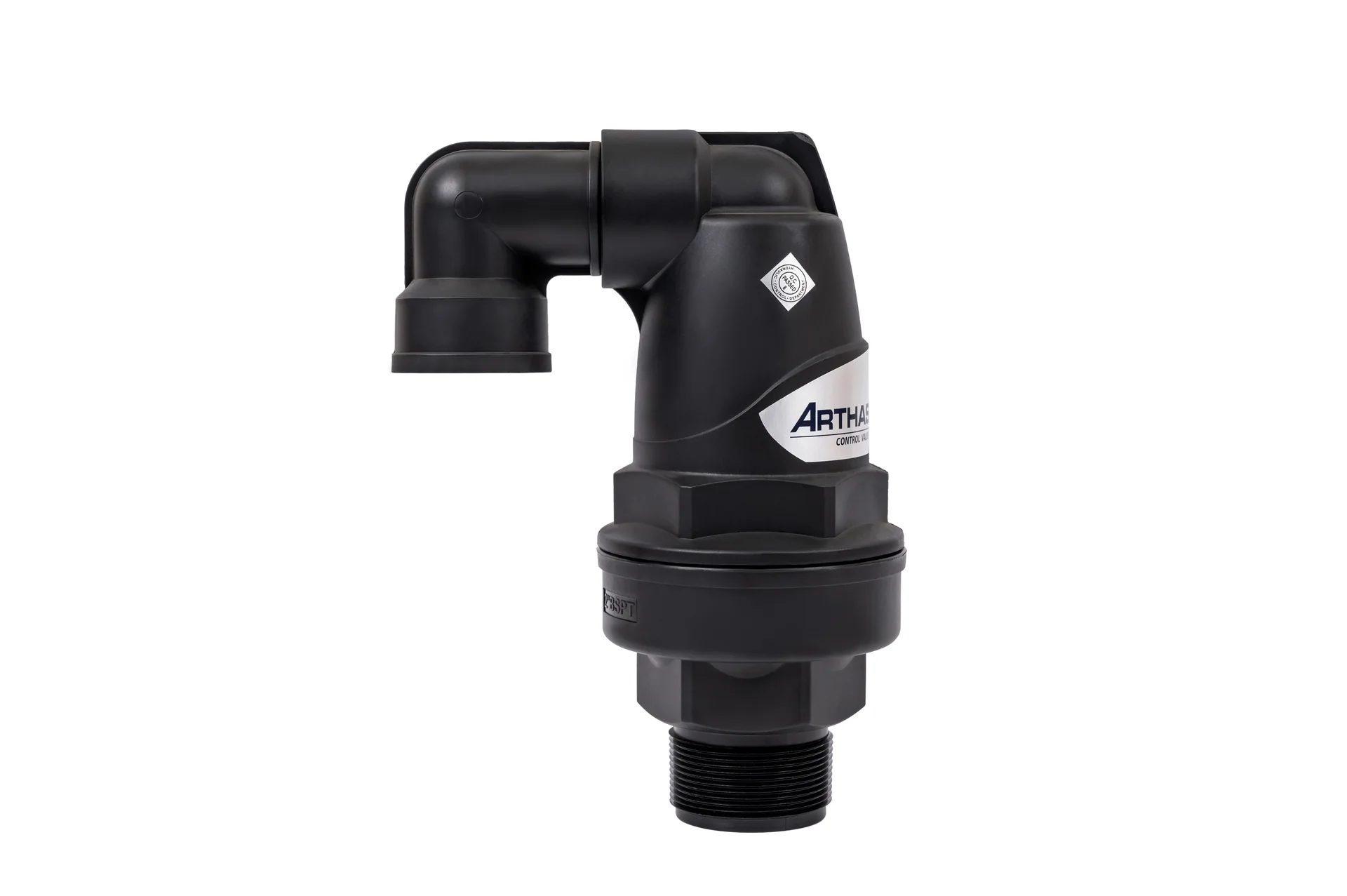

ARKA C20 2 Inch Combined Air Valve is offered for application-based water-system selection in Sabah. The float-operated air/vacuum mechanism manages air intake and discharge during filling, draining and changes in water-line pressure. Select the exact valve function and installation position. Its duty is air and vacuum management in water pipelines, rather than removal of suspended solids. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Air intake and/or discharge according to the selected design
Helps manage vacuum formation during draining
Size for pipeline air-flow requirements rather than liquid flow alone

Applications

Water duty: Compatible irrigation and raw-water distribution lines
Water duty: Industrial water-transfer and filtration manifolds
Industry: Irrigation networks
Industry: Pump stations and transmission pipelines
Industry: Industrial water-treatment systems

Technical information

Manufacturer reference: ARKA C20 SELECTED MODEL — source-checked catalogue/web data BSPT/NPT; orifice area 908 mm²; working pressure 0.2–16 bar; dimensions 249/184/111 mm; weight 1020 g. SOURCE DIFFERENCE / IDENTIFICATION NOTE The web table labels orifice size as mm; the catalogue confirms mm². MANUFACTURER WEB TABLES — related models and original labels are retained below; selected-model notes above take precedence where a source conflicts. MODEL | CONNECTION SIZES | CONNECTION | ORIFICE SIZE (mm) | WORKING PRESSURE (bar) | DIMENSION (mm) | WEIGHTS (g) C20 | 2'' | BSP/NPT | 908 | 0.2-16 | 249*184*111 | 1020 See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the C20 work?

The float-operated air/vacuum mechanism manages air intake and discharge during filling, draining and changes in water-line pressure. Select the exact valve function and installation position.

Which water and industries suit the C20?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for C20 selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the C20 drawings and technical references?

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 · Technical sheet 3 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for C20?

The web table labels orifice size as mm; the catalogue confirms mm².

Discuss this product with SWFI in Kota Kinabalu

For another air valve size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
