ARKA AS110BV manufacturer product reference

Product overview

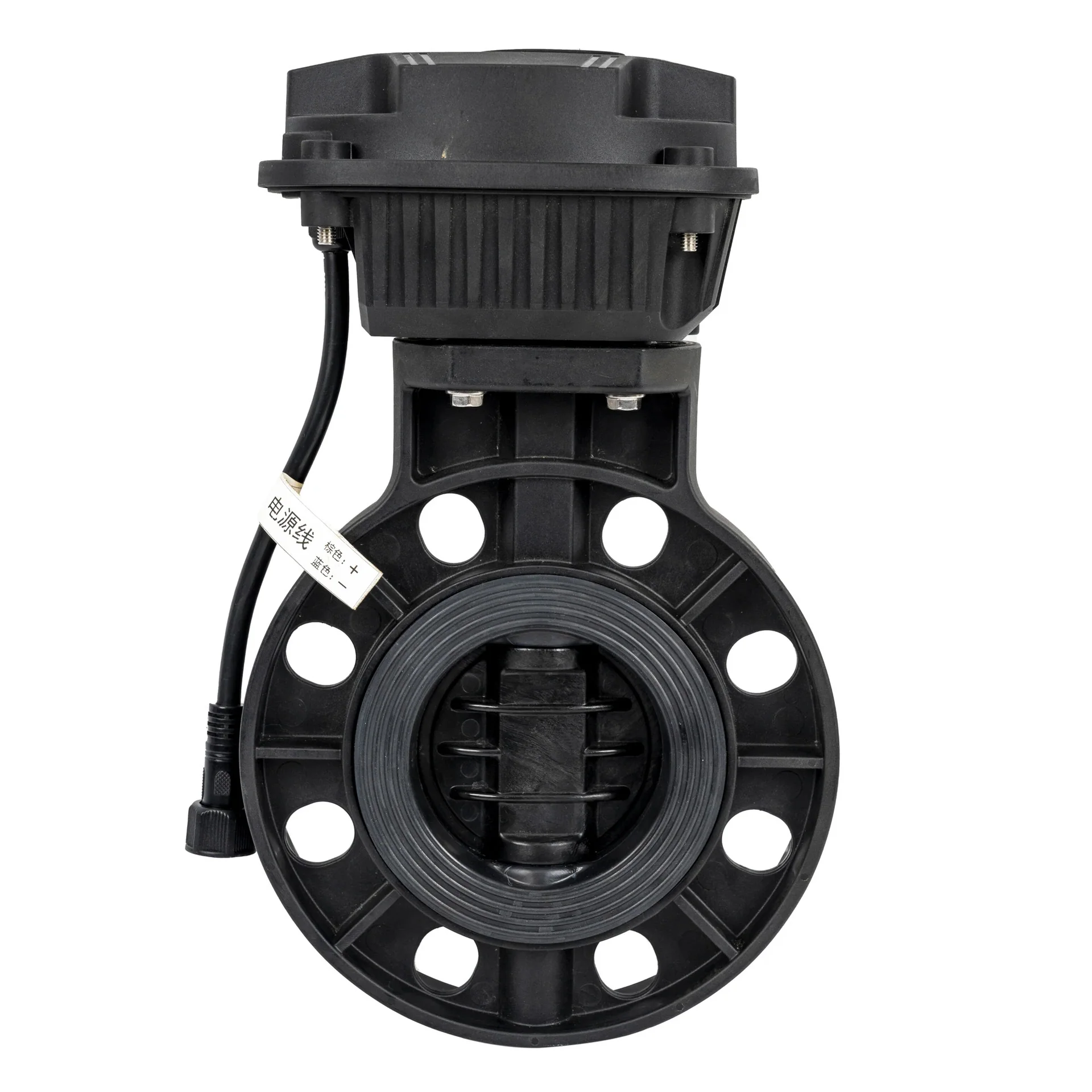

ARKA AS110BV 4 Inch Butterfly Valve is offered for application-based water-system selection in Sabah. A rotating disc controls the opening through the water line. Confirm the actuator, control signal and fail position supplied for the selected assembly. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Rotating-disc flow control
Flanged installation
Confirm actuator and connection requirements

Applications

Water duty: Compatible irrigation and industrial water lines requiring flow isolation or regulation
Industry: Irrigation and water distribution
Industry: Industrial water-treatment pipework
Industry: Controlled water-transfer systems

Technical information

Manufacturer reference: ARKA AS110BV SELECTED MODEL — source-checked catalogue/web data Flange connection; maximum flow 100 m³/h; pressure 10 bar; weight 2.88 kg; H/N1/N2/M1/M2/R1/R2 359/125/155/50/226/110/226 mm; catalogue flange bolts M16 × 100 mm, quantity 8. SOURCE DIFFERENCE / IDENTIFICATION NOTE Web table uses AS110FV; catalogue butterfly-valve code is AS110BV. Confirm the quotation code. MANUFACTURER WEB TABLES — related models and original labels are retained below; selected-model notes above take precedence where a source conflicts. Parameter | Specification Brand Name | ARKA Model Number | AS110FV Material | PA Plastic Connections | 4 inch flange Weight | 2.88 kg Color | Black Max Pressure | 10 Bar Max Flow | 100 m³/h Bolt Size | M16 | See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the AS110BV work?

A rotating disc controls the opening through the water line. Confirm the actuator, control signal and fail position supplied for the selected assembly.

Which water and industries suit the AS110BV?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for AS110BV selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the AS110BV drawings and technical references?

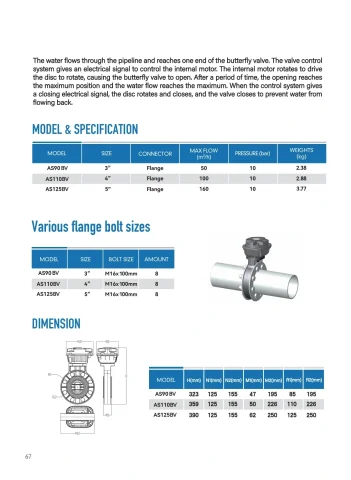

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for AS110BV?

Web table uses AS110FV; catalogue butterfly-valve code is AS110BV. Confirm the quotation code.

Discuss this product with SWFI in Kota Kinabalu

For another butterfly valve size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
